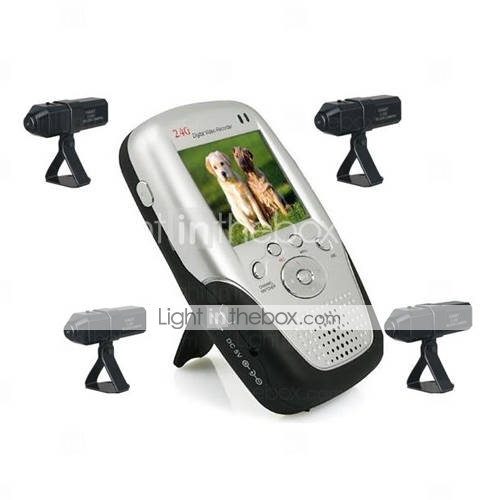

• This 2.4GHz 4-CH wireless DVR baby monitor with 2.5" screen comes with one wireless mini rechargeable Li-battery color camera. The device takes flash memory and SD cards up to 4GB, is compatible with NTSC and PAL formats and the following file formats: MP3, WMA, OGG, AC3, AVI, MPEG1, MPEG2, MPEG4, VOB, DAT.
• Set up multiple cameras in one location or monitor various locations at the same time.
• Perfect as a baby security monitor or security surveillance system.

Specification:

• Monitor Receiver:
• System: PAL/NTSC
• Receiving Frequency: CH1=2414MHz ; CH2=2432MHz ; CH3=2450MHz ; CH4=2468
• Current consumption: 250mA-550mA
• Receiveing sensitivity: -88dbm
• Antenna input impedance: 75ohm
• Video output level: 1vp-p
• Audio output level: 1vp-p
• Music format: MP3, WMA, OGG, AC3
• Video format: AVI, MPEG1, MPEG2, MPEG4, VOB, DAT
• Picture: support picture browse
• Memory : flash memory and expand SD cards (up to 4GB)
• S/N: more than 85db
• Display: 2.5 inch TFT
• Language: Chinese, English, French, Italian, Portuguese, Spanish, Dutch
• Power: Built in rechargable Li-battery,4.2V/1300mA
• Working time: more than 2 hours
• Video outlet: RCA
• Support computer system: WIN98SE/ME/XP/WIN2000
• USB2.0 connect to computer

Camera:

• Image sensor: 1/3 color CMOS
• CMOS pixels: PAL: 628x582,NTSC:510x492
• Horizontal resolution: 380TV lines
• View angle: 62
• Minimum illumination: 1.5LUX/F1.5
• Gain control: Auto
• Frequency: ISM 2400—2483MHZ 4CH
• Transmission power: 10mw
• Modulation mode: FM
• Bandwitch: 18MHZ
• Consumption current: 80mAh
• Operating humidity: 85%RH
• Dimensions: 66.0x23.0x23.0mm
• Transmission distance: 100m without block
• Power supply: DC 5V
• Battery: 500mAh rechargable Li-battery for 2-3 hours working time
