Highlights
This 7 inch HD LCD Monitor features an internal Lithium-Ion rechargeable battery.

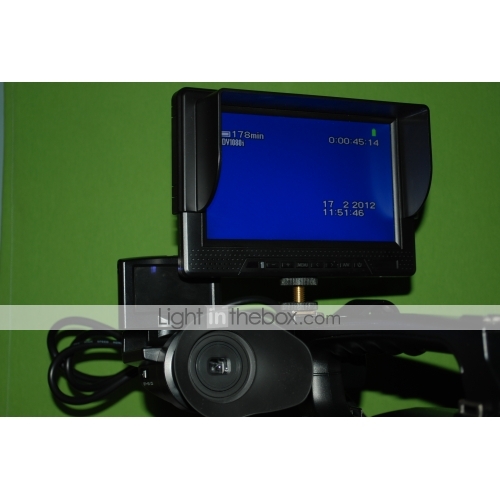

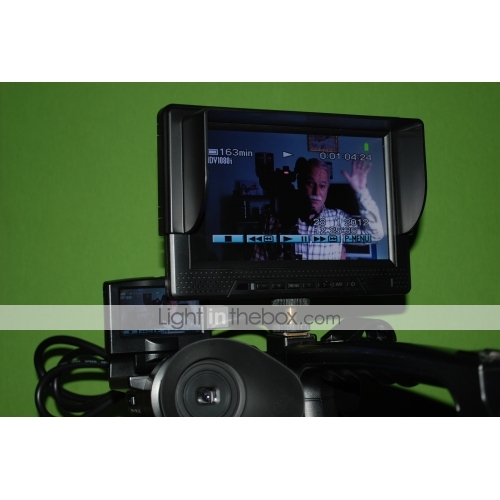

This monitor is designed to be used as an external video display that can be mounted on top of a camera, DSLR Sled, or to the side of a tripod - allowing you to step back from the camera while still being able to frame and capture the action without straining to look through the cameras usually small or non-existent viewfinder.
The 7 inch HD LED monitor is light weight, low power consumption and low cost make it ideal to use with any Canon/Panasonic video camera with RGB outputs, DSLR, DV and HD video camera. This 7 inch HD LED monitor easily switches between 16:9 and 4:3 aspect ratios and has image orientation controls where the picture can be flipped horizontally and vertically when used with Depth of Field (DOF) adapters.
Whether mounted on your camera with a shoe mount, on your tripod with an arm and clamp or near the camera with the included stand, the 7 inch HD LED monitor will provide you with instant playback of your footage wherever you are.
Product Specification
- LED Backlight: Yes
- Aspect Ratio: 16:9
- Display Ratio: 16:9 or 4:3 adjustable
- Image Flip: Vertical flip and Horizontal flip
- Resolution: 800×480 up to 1920 x 1080
- Brightness: 450cd/m
- Contrast: 500:1
- Viewing Angle: 120°/ 140°(H/V)
- HDMI input: Supports MAX 1080p (1920*1080p) and 1080i(1920*1080i)
- Compatible with Devices with HDMI or mini HDMI output, such as Canon 5D mark II, Canon 7D, Nikon D300S and D3S
- and so on.
- YPbPr input: Supports MAX 1080p (1920*1080p) and 1080i (1920*1080i) automatically compatible with PAL/NTSC video.
- AV input: Two BNC video inputs and one BNC audio input
- OSD Languages: English, Chinese
- Input Voltage: DC 12V
- Battery (built-in): 2200mAh@7.4V
- Input Current: 650mA (1.2A when charging)
- Standby Current: ?50mA
- Power Consumption: ?8W
- Input Resistance: 75?
- Input Frequency: H/30-60KHz,V/60-75Hz
- Audio Output: ?250mW
- Speaker: ×1(front)
- AC Adapter:
- Input: 100-240V, 50/60Hz, 0.60A
- Output: 12V, 1200mA
what's in the box?
- 1 x User Manual - English
- 1 x Light Hood (Sun Shade)
- 1 x Mini HDMI to full HDMI Cable
- 1 x Hot Shoe Mount
- 1 x European Power Adapter (100-240v)
- 1 x Rechargable Lithium-Ion Battery
- 1 x Remote Control
