Description

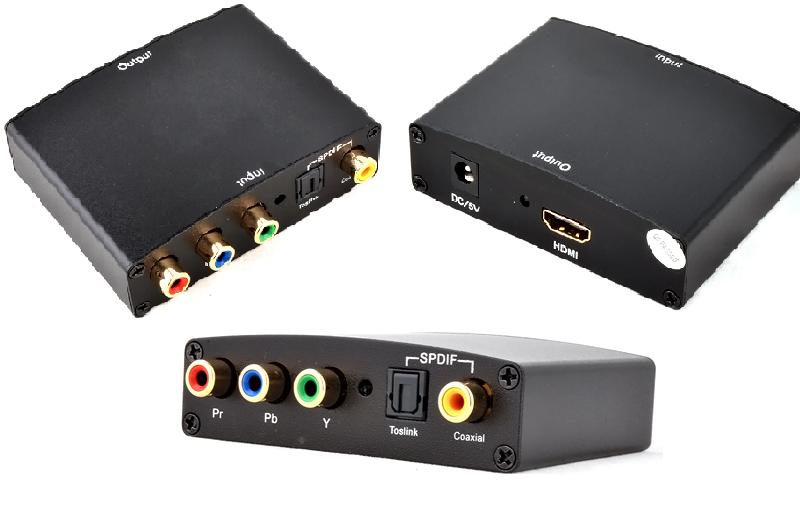

• HDMI Converter (YPbPr to HDMI)
• P/N:HCO0101
• Input:YPbPr+SPDIF Audio
• Output:HDMI
• The HCO0101 is a component video(YPbPr) converter that allows older analog devices to be integrated seamlessly into the modern home theater.
• This adapter connects component video home theater devices to HDMI compliant digital monitors.
• This adapter also takes digital audio and encodes it onto the HDMI signal for the full HDMI video and audio effect. With the Component + Digital Audio to HDMI Adapter legacy home theater devices can be easily connected any HDMI display for the full digital video and audio experience.

Feature

• 1)Allows you to connect YPbPr HDTV sources to an HDMI™ display
• 2)Encodes digital audio onto the video signal for HDMI™ video and audio
• 3)Supports HDTV/YPbPr
• 4)Supports HDTV resolution up to 1080p
• 5)HDMI compliant

Package Contents

• 1)Main unit. P/N_HCO0101
• 2)5V Power Supply
• 3)User's Manual
• 4)HDMI cables are optional.

Connect and operate

• 1)Connect the input sources into HCO0101. (Input cables are optional)
• 2)Connect the HDMI device into the HDMI Output slot in the back of HCO0101.
• 3)Insert the DC side of 5v power supply into HCO0101 and then connect
• 4)the AC side of the power supply into the wall outlet

Specification

• HDMI Video Amplifier Bandwidth..........................1.65Gbps/165MHz
• Input Video Signal......................................1.2 volts p-p
• Input DDC Signal........................................5 volts p-p (TTL)
• HDMI Connector..........................................type A (19 pin) female
• Video Connector….......................................3 RCA Component
• Audio Connector.........................................SPDIF
• Power Consumption.......................................5 watts (max)
• Power Supply............................................5V DC
• Dimensions..............................................91mmW x 22mmH x 75mmD
• Net Weight..............................................0.12KGs
